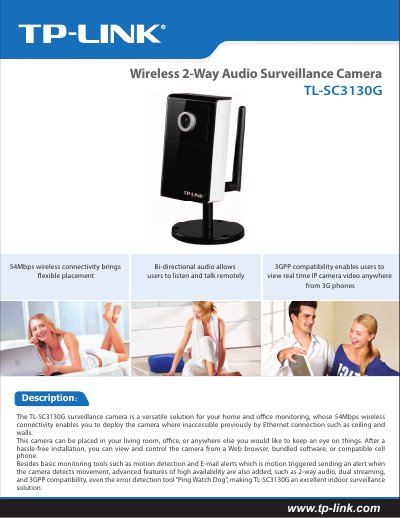

The TL-SC3130G surveillance camera is a versatile solution for home and office monitoring. It provides 54Mbps wireless connectivity, enabling deployment in previously inaccessible areas such as ceilings and walls. The camera can be placed in the living room, office, or any other desired location. It can be viewed and controlled through a web browser, bundled software, or compatible cell phone. Advanced features include 2-way audio, dual streaming, 3GPP compatibility, and an error detection tool called 'Ping Watch Dog'. The camera also supports motion detection and email alerts. It has a 1/4'' progressive scan CMOS sensor for clear images even in low light conditions.
The TL‑SC3130G is a wireless 2‑way audio surveillance camera designed for indoor home or office monitoring. This guide provides step‑by‑step installation instructions, explains how to access the camera via a web browser, bundled software, or a compatible 3G phone, and describes the camera’s key functions such as motion detection, e‑mail alerts, and dual‑stream video.
Key features include 54 Mbps Wi‑Fi for flexible placement, a 1/4" progressive‑scan CMOS sensor for clear images in low light, full‑duplex audio with G.711 PCM compression, and support for up to 16 cameras in the management software. Security is enhanced with SSLv3/HTTPS encryption and an embedded watchdog that restarts the device on error.
| Wireless data rate | 54 Mbps |
|---|---|
| Image sensor | 1/4" progressive scan CMOS |
| Frame rate | up to 30 fps at VGA resolution |
| Video streams | MPEG‑4/MJPEG dual streams |
| Audio compression | G.711 PCM, 8 kHz, 64 kbit/s |
| Power supply | 5 V DC, 2 A |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions (HxWxD) | 3.7 × 2.7 × 1.2 in (96 × 58 × 31 mm) |
The bundled management software can accommodate up to 16 cameras at the same time.
The camera uses G.711 PCM audio compression at 8 kHz with a bitrate of 64 kbit/s.
An embedded watchdog function automatically restarts the IP camera when errors are detected.
