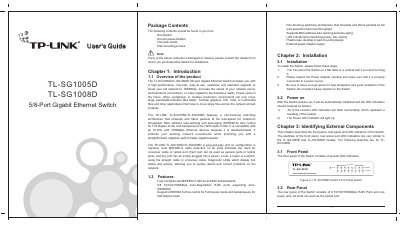

This is a user guide for TL-SG1005D/TL-SG1008D 5/8-port Gigabit Ethernet Switch
This guide introduces the TL‑SG1005D/TL‑SG1008D 5‑/8‑port Gigabit Ethernet Switch, describing its non‑blocking switching architecture, auto‑MDI/MDIX, and LED indicators for power, link and activity. It explains the plug‑and‑play operation and lists the package contents, including the switch, power adapter and mounting accessories.
Installation steps cover connecting the supplied AC power adapter, positioning the unit for proper ventilation, and verifying LED status. The manual also details the front and rear panel layouts, LED meanings, technical specifications, FCC and EU compliance statements, and troubleshooting tips such as checking the power LED or cable connections. This manual is written in Chinese.
| Number of Ports | 5/8 |
|---|---|
| Data Transfer Rates | Gigabit Ethernet: 2000Mbps (Full Duplex) |
| Power Supply Output | AC 9V~ 1.2A |
| Dimensions (W × D × H) | 7.3 × 5.7 × 1.7 in (186 × 146 × 44 mm) |
| Operating Temperature | 0 °C ~ 40 °C |
| Operating Humidity | 10 % ~ 90 % non‑condensing |
| LED Indicators | Power, Link/Act |
| Transfer Method | Store‑and‑Forward |
Connect the supplied AC power adapter, place the switch on a flat surface or mount it on a wall, ensure adequate ventilation, and verify that the Power LED lights up.
The Power LED indicates that the switch is receiving power, while the Link/Act LEDs show link status and activity for each 10/100/1000 Mbps port.
The cable must be less than 100 meters (328 feet) long.
