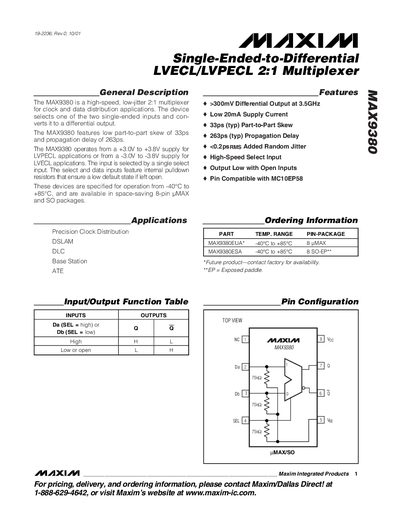

The MAX9380 is a high-precision clock distributor that uses a 2:1 multiplexer with single-ended inputs and differential outputs. It has low part-to-part skew and propagation delay. It is selected by a single select input, and the select and data inputs have internal pull-down resistors that ensure a low default state if they are left open.
The MAX9380 selects one of two single‑ended inputs and converts it to a differential LVPECL or LVECL output. It operates from a +3.0 V to +3.8 V supply (LVPECL) or –3.0 V to –3.8 V (LVECL) and includes internal pulldown resistors for a defined low default state.
Typical applications include precision clock distribution, DSLAMs, base stations and test equipment. The device is offered in 8‑pin UMAX and SO packages and is pin‑compatible with the MC10EP58.
| Supply Voltage (LVPECL) | +3.0 V to +3.8 V |
|---|---|
| Typical Supply Current | 20 mA |
| Part‑to‑Part Skew (typ) | 33 ps |
| Propagation Delay (typ) | 263 ps |
| Differential Output Voltage | >300 mV at 3.5 GHz |
| Operating Temperature Range | -40 °C to +85 °C |
The device operates from +3.0 V to +3.8 V for LVPECL applications or –3.0 V to –3.8 V for LVECL applications.
The typical propagation delay is 263 ps.
The MAX9380 draws about 20 mA of supply current.
The typical part‑to‑part skew is 33 ps.
