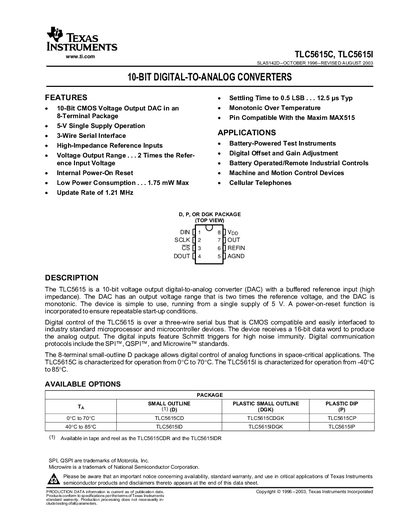

The TLC5615C/I is a 10-bit voltage output digital-to-analog converter (DAC) from TI that supports a 3-wire serial interface, has high impedance reference inputs, and digital gain/offset adjustment. The device has single-supply operation (5V) and repeatable start-up conditions, and can be used on industry standard microprocessor and microcontroller devices.
The TLC5615C and TLC56151 are 10‑bit voltage‑output digital‑to‑analog converters from Texas Instruments, featuring a buffered reference input, single‑supply operation, and monotonic performance.
They support SPI, QSPI and Microwire interfaces, are offered in small‑outline packages (D, DGK, P) for temperature ranges –40 °C to 85 °C, and are suited for battery‑powered test instruments, industrial controls and telecom equipment.
| Resolution | 10 bits |
|---|---|
| Supply voltage | 4.5 V – 5.5 V (typical 5 V) |
| Power consumption | 1.75 mW max |
| Settling time | 12.5 µs typ to 0.5 LSB |
| Update rate | 1.21 MHz |
The device operates from 4.5 V to 5.5 V, with a typical supply of 5 V.
Typical settling time is 12.5 µs to stay within 0.5 LSB of the final value.
It supports SPI, QSPI and Microwire serial interfaces.
The DAC consumes up to 1.75 mW under typical conditions.
