The SN74LV132A is a quad positive-NAND gate designed for 2-V to 5.5-V VCC operation. It performs the Boolean function Y = A • B or Y = A + B in positive logic.

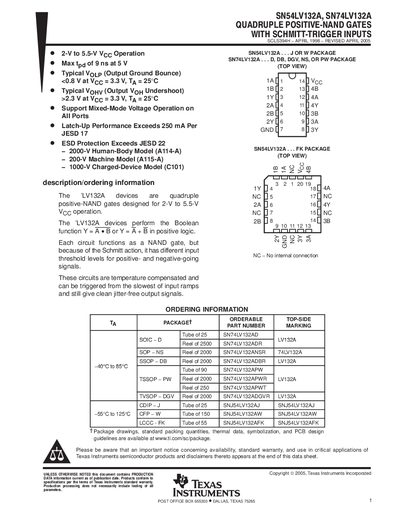

The SN54LV132A (also offered as SN74LV132A) provides four positive‑NAND gates with Schmitt‑trigger inputs, suitable for 2‑V to 5.5‑V supply operation. The devices feature low‑power consumption, robust ESD protection, and temperature‑compensated switching.
The datasheet lists recommended operating conditions, electrical characteristics such as output current limits and voltage swing, and a range of package options (SOIC, SSOP, TSSOP, etc.). Ordering information, mechanical dimensions, and a package‑option addendum are included, along with TI’s standard warranty and safety notices.
| ESD protection (Human‑Body Model) | 2000 V |
|---|---|
| ESD protection (Machine Model) | 200 V |
| ESD protection (Charged‑Device Model) | 1000 V |
| Package thermal impedance (D package) | 6 °C/W |
| Storage temperature range | -65 °C to 150 °C |
It meets 2000 V Human‑Body Model, 200 V Machine Model, and 1000 V Charged‑Device Model specifications.
The part is offered in SOIC, SSOP, TVSOP, TSSOP, and other surface‑mount packages.
