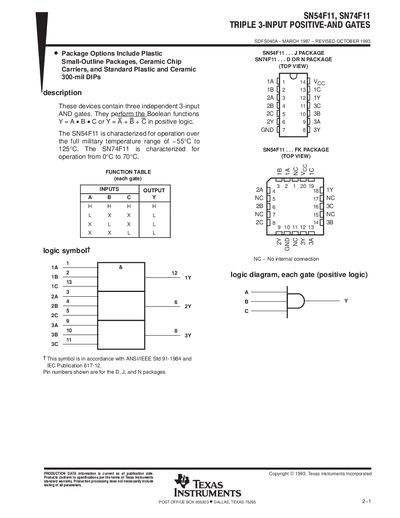

This data sheet provides detailed information on the SN54F11/SN74F11 3-input AND gates, including their functions, pin configurations, and appearance.
The SN54F11 and SN74F11 are triple 3‑input positive‑AND gate devices that implement the Boolean function Y = A·B·C in positive logic. Each device contains three independent gates and is offered in a variety of package types, including plastic DIP, SOIC, and ceramic options.
The document lists absolute maximum ratings, recommended operating conditions, electrical characteristics such as supply voltage, input thresholds, and output currents, as well as detailed mechanical and packaging data for the different package families.
| High‑level input voltage (VIH) min | 2 V |
|---|---|
| Low‑level input voltage (VIL) max | 0.8 V |
| Low‑level output current (IOL) | 20 mA |
The device is offered in plastic DIP, small‑outline (SOIC) and ceramic packages, with various pin counts and lead finishes.
