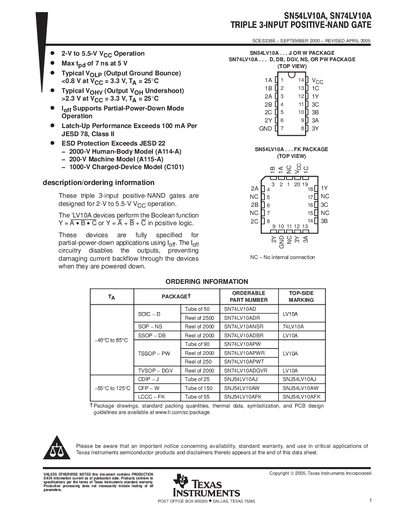

This document mainly introduces the features and characteristics of the SN74LV10A series products, including the working voltage range, the maximum tpd, the typical VOLP, the typical VOHV, etc.
The SN54LV10A is a triple 3‑input positive‑NAND gate designed for 2 V to 5.5 V supply operation. The document provides detailed electrical characteristics, recommended operating conditions, and packaging options for the device.
It includes ordering information, mechanical drawings, ESD ratings, and a notice on product availability and warranty. The data sheet is intended for designers selecting the part for new circuits or for reference in existing designs.
| Maximum toggle time (5 V) | 7 ns |
|---|---|
| ESD protection (Human‑Body Model) | 2000 V |
| Operating temperature range | -40 °C to 85 °C |
| Typical VOH (quiet output) | 3.2 V |
The maximum toggle time is 7 ns when powered at 5 V.
The SN54LV10A is rated for operation from –40 °C to +85 °C.
