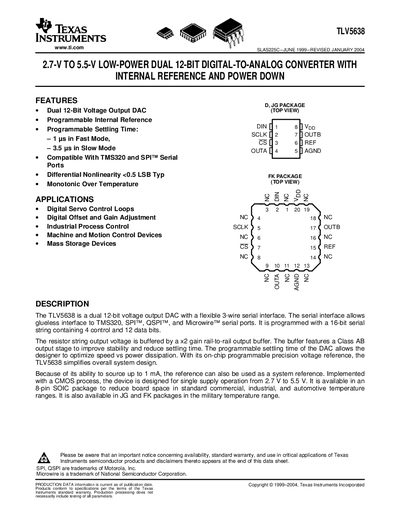

The TLV5638 is a low-power dual 12-bit digital-to-analog converter with internal reference and power down function.
The TLV5638 is a dual 12‑bit voltage‑output digital‑to‑analog converter (DAC) that operates from a single 2.7 V to 5.5 V supply. It features an on‑chip programmable precision reference, a x2 gain rail‑to‑rail output buffer, and a flexible 3‑wire serial interface compatible with TMS320, SPI™, QSPI™ and Microwire™ ports.
The device is offered in 8‑pin SOIC, JG and FK packages for commercial, industrial and military temperature ranges. Typical performance includes <0.5 LSB differential nonlinearity, monotonic operation over temperature, 1 mA source and –1 mA sink capability, and programmable settling times from 1 µs (fast) to 3.5 µs (slow).
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 12 bits |
| Output source/sink current | 1 mA source, –1 mA sink |
| Differential nonlinearity | <0.5 LSB (typical) |
| Power‑supply current (fast mode, Vpp=5 V) | Typical 3.9 mA |
It is compatible with TMS320, SPI™, QSPI™ and Microwire™ serial ports.
