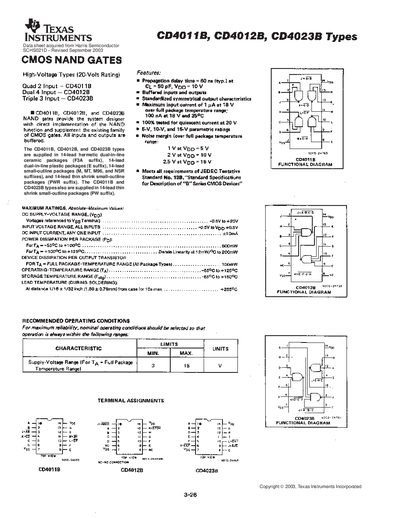

This document describes the features and characteristics of CD4011B, CD4012B, and CD4023B products, as well as the different packaging types they are supplied in. These products are manufactured by Harris Semiconductor and are available in various 14-lead package types.
The document provides detailed specifications for the CD4011B, CD4012B, and CD4023B CMOS NAND gate families. It includes typical electrical parameters such as propagation delay, input current, supply voltage range, and operating temperature limits, as well as static and dynamic characteristics.
Package information is listed for each device, covering PDIP, SOIC, TSSOP, and other package types, together with mechanical drawings and dimensions. The datasheet also contains an important notice about product status, warranty, and usage restrictions.
| Propagation delay time | 60 ns typ (CL = 50 pF, Vop = 10 V) |
|---|---|
| Supply voltage range | 0.5 V to +20 V |
The typical propagation delay is 60 ns when the load capacitance is 50 pF and the supply voltage is 10 V.
They operate from 0.5 V up to 20 V.
