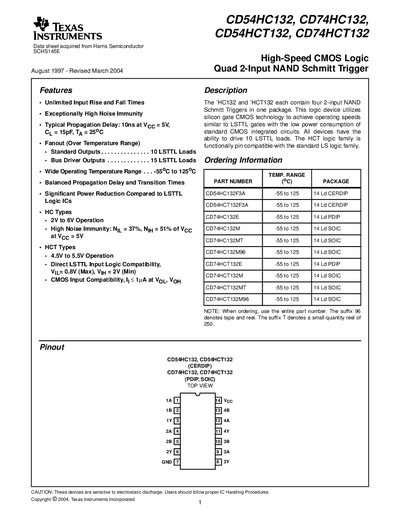

This datasheet introduces the features of HC132 and HCT132, including operating voltage, input rise and fall time, noise immunity, propagation delay, load, operating temperature range, power consumption, etc.
The CD74HC132, CD74HCT132, CD54HC132 and CD54HCT132 are high‑speed CMOS logic devices that contain four 2‑input NAND Schmitt‑trigger gates in a single package. They offer unlimited input rise/fall times, high noise immunity, and low power consumption, and can drive up to ten LSTTL loads.
The datasheet provides functional diagrams, absolute maximum ratings, DC electrical specifications, switching characteristics, test circuits, packaging options, ordering information, and tape‑and‑reel dimensions. It also includes the device status, eco‑plan details, and legal notices from Texas Instruments.
| Supply Voltage Range (HC Types) | 2 V to 6 V |
|---|
HC type devices require a supply voltage of 2 V to 6 V.
