The SN74AHC1G08 is a single 2 input positive-AND gate from Texas Instruments.
The SN74AHC1G08 is a single 2‑input positive‑AND gate that implements the Boolean function Y = A·B in positive logic. The device is intended for use in digital logic circuits where low power consumption and fast switching are required.

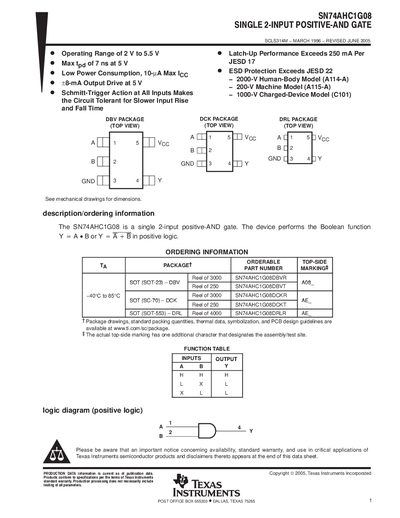

The datasheet details the operating voltage range, maximum propagation delay, output drive capability, ESD protection, absolute maximum ratings, and packaging options such as SOT‑23 DBV, SC‑70 DCK and SOT‑DRL. Ordering information, tape‑and‑reel dimensions, and an important notice about product liability are also included.
| Supply voltage range | 2 V to 5.5 V |
|---|---|
| Maximum propagation delay | 7 ns at 5 V |
| Quiescent current | 10 µA max |
| Output drive current | ±8 mA at 5 V |
| Input clamp current | −20 mA |
| Output clamp current | ±20 mA |
The device operates from 2 V to 5.5 V.
The maximum propagation delay is 7 ns when powered at 5 V.
It can source or sink up to ±8 mA at a 5 V supply.
