TLV5626 is a dual 8-bit voltage output DAC with programmable internal reference and power down feature. It is suitable for applications such as digital servo control loops, digital offset and gain adjustment, industrial process control, machine and motion control devices, and mass storage devices.
The TLV5626 is a low‑power dual 8‑bit voltage‑output DAC with an internal programmable reference and power‑down capability. It operates from a single 2.7 V to 5.5 V supply and offers a flexible 3‑wire serial interface compatible with TMS320, SPI™, QSPI™, and Microwire™ ports. Typical applications include digital servo control loops, industrial process control, and machine‑motion control devices.

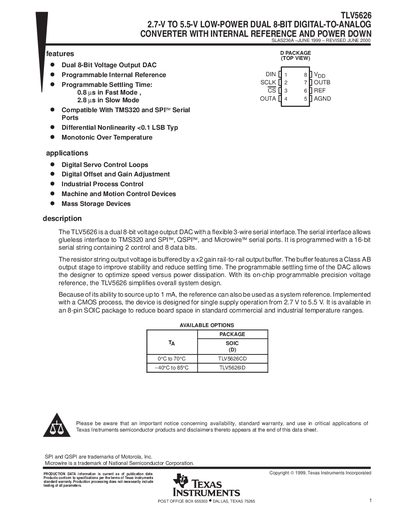

The datasheet provides absolute maximum ratings, recommended operating conditions, detailed electrical characteristics, pin‑out tables, timing diagrams, and mechanical dimensions. It also includes typical performance curves for supply current, output voltage, settling time, slew rate, and distortion metrics, as well as an important notice about product availability and warranty.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 8 bits |
| Differential nonlinearity | <0.1 LSB (typ) |
| Signal‑to‑noise ratio (typical) | 53 dB |
| Spurious‑free dynamic range (typical) | 62 dB |
The TLV5626 operates from a single supply voltage between 2.7 V and 5.5 V.
The DAC provides an 8‑bit resolution.
