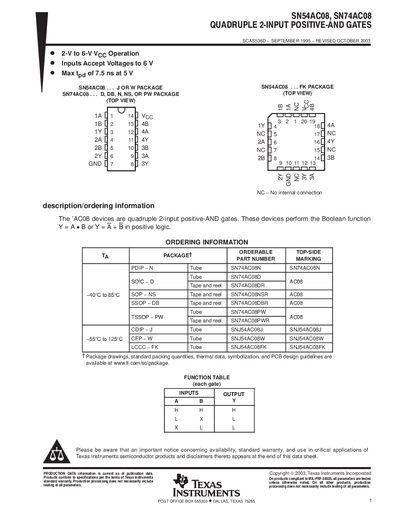

This datasheet provides detailed information about the SN54AC08/SN74AC08 bipolar complementary 2-input positive AND gates, including function, pin definition, package type, operating voltage range, package diagram, logic table, etc.
The SN54AC08 and SN74AC08 are quadruple 2‑input positive‑AND gates that implement the Boolean function Y = A·B in positive logic. The document provides detailed electrical characteristics, recommended operating conditions, and package information for a variety of package types.
Additional sections cover absolute maximum ratings, parameter measurement methods, packaging options, mechanical drawings, and important legal notices. The data sheet is intended for designers who need precise specifications for integrating these logic devices into their circuits.
| Supply voltage (VCC) range | 2 V to 6 V |
|---|---|
| Continuous output current | up to +50 mA |
The supply voltage (VCC) for the SN54AC08 ranges from 2 V to 6 V.
The device can source up to 50 mA of continuous output current.
