CD4068B is a 14-bit binary adder from TI, which has high current driving capacity and can be used as a counter, shift register, adder, multiplier, logic circuit, etc.

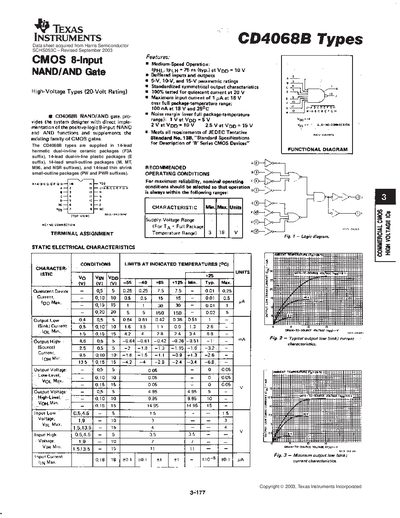

The CD4068B is a 14‑lead CMOS logic integrated circuit offered in several package types, including hermetic dual‑in‑line ceramic (F3A suffix), dual‑in‑line plastic (E suffix), small‑outline (M, MT, M96, NSR suffixes), and thin‑shrink small‑outline (PW, PWR suffixes). The datasheet lists the device’s status, packaging dimensions, and eco‑plan classifications.
Packaging information includes pin counts, reel dimensions, and material specifications. The eco‑plan indicates RoHS compliance with Pb‑Free and Green (no Sb/Br) options, and the document provides moisture‑sensitivity level (MSL) and peak temperature guidance.
| Package types | 14‑lead hermetic dual‑in‑line ceramic (F3A), dual‑in‑line plastic (E), small‑outline (M, MT, M96, NSR), thin‑shrink small‑outline (PW, PWR) |
|---|---|
| RoHS compliance | Pb‑Free (RoHS) and Green (RoHS & no Sb/Br) options |
| Moisture Sensitivity Level (MSL) | Specified in the datasheet (MSL rating and peak temperature) |
The CD4068B is offered in hermetic dual‑in‑line ceramic (F3A), dual‑in‑line plastic (E), small‑outline (M, MT, M96, NSR), and thin‑shrink small‑outline (PW, PWR) packages.
Yes, the device is available in Pb‑Free (RoHS) and Green (RoHS & no Sb/Br) versions.
