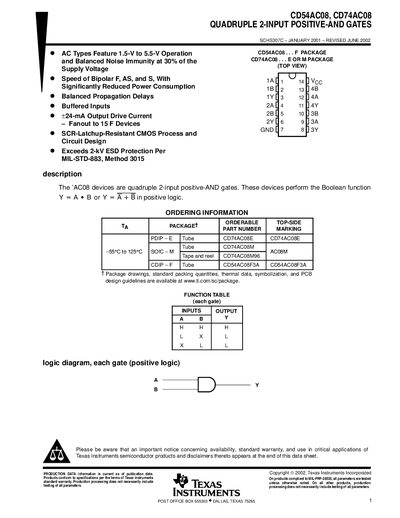

Texas Instruments CD54AC08 CD74AC08 Datasheet

About this manual

This Texas Instruments datasheet describes the CD54AC08 and CD74AC08 devices, which are quadruple 2‑input positive‑AND gates. The document provides functional tables, electrical and switching characteristics, recommended operating conditions, and ordering and packaging information.

Key specifications include a supply voltage range of 1.5 V to 5.5 V, up to +24 mA output drive current, fan‑out to 15 loads, and robust ESD protection. Packaging options such as PDIP, SOIC, and tape‑and‑reel are listed, along with thermal and mechanical data for design engineers.

What's inside

• QUADRUPLE 2-INPUT POSITIVE-AND GATES
• ORDERING INFORMATION
• FUNCTION TABLE
• ELECTRICAL CHARACTERISTICS
• SWITCHING CHARACTERISTICS
• IMPORTANT NOTICE
• PACKAGE OPTION ADDENDUM
• PACKAGE MATERIALS INFORMATION
• MECHANICAL DATA

Specifications

Frequently asked questions

What is the maximum output current the device can source?

It can source up to +24 mA of output drive current.
