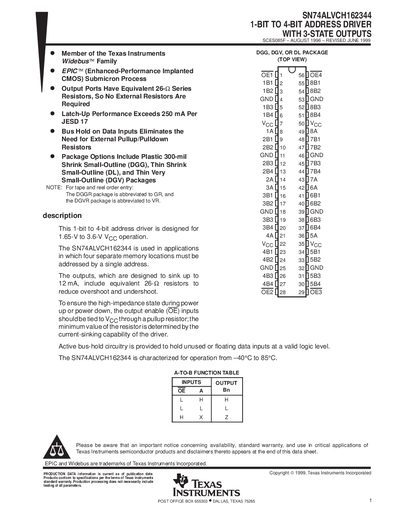

SN74ALVCH162344 1-bit to 4-bit address driver with 3-state outputs
The SN74ALVCH162344 is a 1‑bit to 4‑bit address driver designed for applications that require four separate memory locations to be addressed by a single address line. It features 3‑state outputs with built‑in bus‑hold circuitry, internal equivalent resistors to reduce overshoot, and can sink up to 12 mA per output.
The device operates from a 1.65 V to 3.6 V supply, supports a temperature range of –40 °C to 85 °C, and is offered in several plastic packages such as DGG (Shrink Small‑Outline), DGV, and DL. Electrical characteristics, timing parameters, and recommended operating conditions are provided in the datasheet.
| Operating temperature range | –40 °C to 85 °C |
|---|
The device is rated for –40 °C to 85 °C.
