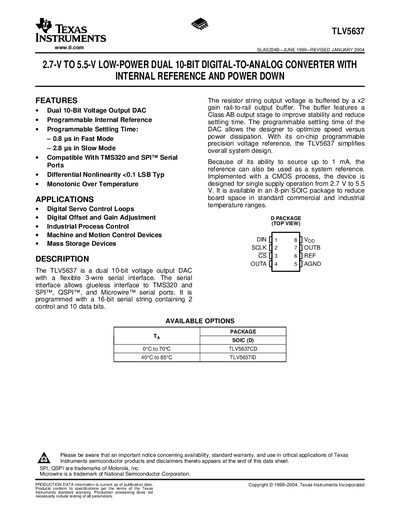

The TLV5637 is a dual 10-bit voltage output DAC with a flexible 3-wire serial interface. It features an internal reference voltage and power-down capability, making it suitable for various applications including industrial process control, machine and motion control devices, and mass storage devices.
The TLV5637 is a low‑power dual 10‑bit voltage‑output DAC with an internal programmable reference and a flexible 3‑wire serial interface. It supports TMS320, SPI™, QSPI™, and Microwire™ serial ports and offers programmable settling times for speed‑power trade‑offs.
The document lists detailed absolute maximum ratings, recommended operating conditions, electrical characteristics, dynamic performance data, and mechanical dimensions, along with an important notice on product warranties and usage rights.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 10 bits |
The device operates from 2.7 V up to 5.5 V.
It provides a 10‑bit resolution.
