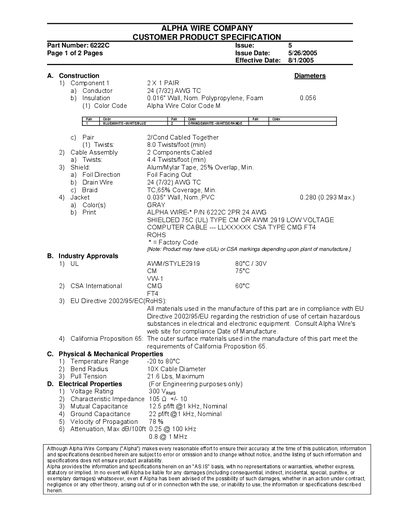

The Alpha Wire 6222C Customer Product Specification provides detailed construction information for the shielded 24 AWG computer cable, including conductor type, insulation, jacket color, and shielding details. It also lists packaging options of 500 ft and 1000 ft.
Industry approvals such as UL, CSA, EU RoHS, and California Proposition 65 are documented, along with physical, mechanical, and electrical properties like temperature range, voltage rating, characteristic impedance, and attenuation values.
| Temperature Range | -20 to 80°C |
|---|---|
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 21.6 Lbs, Maximum |
| Voltage Rating | 300 Vrms |
| Characteristic Impedance | 105 Ω +/- 10 |
| Mutual Capacitance | 12.5 pF/ft @1 kHz |
| Ground Capacitance | 22 pF/ft @1 kHz |
| Velocity of Propagation | 78 % |
| Attenuation (100 ft) @100 kHz | 0.25 dB |
| Attenuation (100 ft) @1 MHz | 0.8 dB |
| Jacket Color | GRAY |
The cable is rated for 300 Vrms.
The cable can operate from –20 °C to 80 °C.
It has a characteristic impedance of 105 Ω ± 10.
