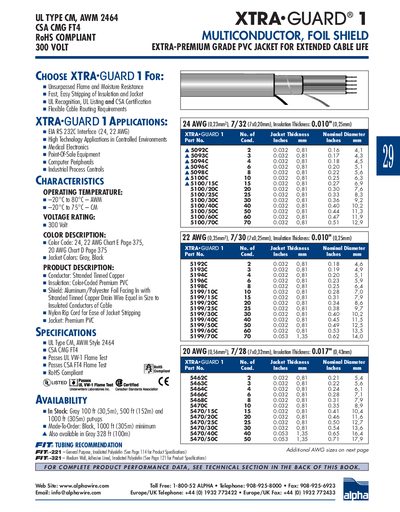

XTRA•GUARD 1 MULTICONDUCTOR, FOIL SHIELD EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE
The XTRA:GUARD 1 is a multiconductor foil‑shielded cable with a premium PVC jacket, designed for high flame and moisture resistance. It meets UL Type CM, AWM Style 2464 and CSA CMG FT4 standards, passes UL VW‑1 and CSA FT4 flame tests, and is RoHS compliant.
The cable is suited for medical electronics, point‑of‑sale equipment, computer peripherals, and industrial process controls. It is available in gray and black jackets in various lengths, with optional made‑to‑order options for longer runs.
| UL Type | CM, AWM Style 2464 |
|---|---|
| CSA Certification | CMG FT4 |
| Voltage Rating | 300 Volt |
| Operating Temperature | –20°C to 80°C (AWM) |
| Jacket Colors | Gray, Black |
| Conductor | Stranded Tinned Copper |
| Insulation | Color‑Coded Premium PYC |
| Shield | Aluminum/Polyester foil with stranded tinned copper drain wire |
| RoHS Compliance | Compliant |
| Flame Test (UL) | Passes UL VW‑1 |
| Flame Test (CSA) | Passes CSA FT4 |
It is UL Type CM, AWM Style 2464 and CSA CMG FT4 certified, and it passes UL VW‑1 and CSA FT4 flame tests.
The cable is rated for 300 Volt.
Gray and Black jackets are offered.
It operates from –20 °C up to 80 °C (AWM).
