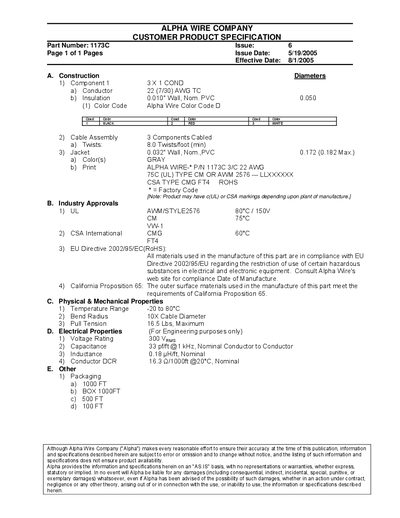

Alpha Wire 1173C Product Specification
The Alpha Wire 1173C product specification provides detailed information on the construction of the cable assembly, including conductor size, insulation, and color code. It also lists the approved industry standards such as UL, CSA and EU RoHS compliance.
Mechanical properties such as temperature range, bend radius and pull tension are given, along with electrical characteristics like voltage rating, capacitance, inductance and conductor resistance. Packaging options and legal disclaimer notes are also included.
Alpha 1173C specifications
| Temperature Range | -20 to 80°C |
|---|---|
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 16.5 Lbs, Maximum |
| Voltage Rating | 300 Vrms |
| Capacitance | 33 pf/ft @1 kHz |
| Inductance | 0.18 UH/ft |
| Conductor DCR | 16.3 QMO000ft @20°C |
| Conductor Size | 22 (7/30) AWG TC |
All Alpha 1173C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage rating of the Alpha Wire 1173C?
The voltage rating is 300 Vrms.
Which industry approvals does the Alpha Wire 1173C have?
It is approved by UL AWM/STYLE2576 80°C /150V, CSA International CMG 60°C, and complies with the EU RoHS directive.
What is the voltage rating of Alpha Wire 1173C?
The wire is rated for 300 V.
What are the RoHS limits for lead in this product?
Lead is limited to 0.1 % by weight (1000 ppm).
