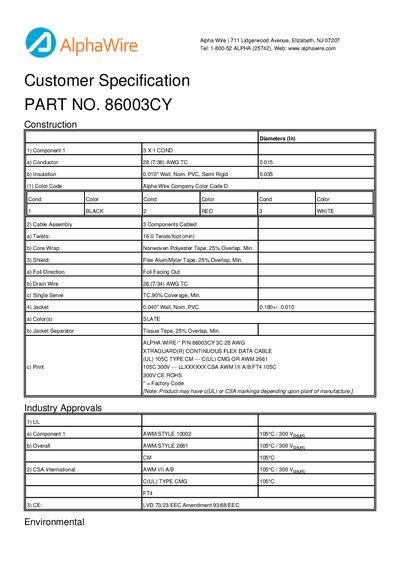

The Alpha Wire 86003CY cable specification provides detailed construction information, including conductor size, insulation, shielding, and jacket materials. It lists industry approvals such as UL, CSA, and RoHS compliance, and includes environmental directives.
Technical data cover physical and mechanical properties (temperature range, bend radius, pull tension, sunlight resistance) as well as electrical characteristics (voltage rating, capacitance, inductance, resistance). Packaging options and a RoHS Certificate of Compliance are also included.
| Temperature Range | -10 to 105°C (static), +5 to 105°C (dynamic) |
|---|---|
| Bend Radius | 8× Cable Diameter (static), 8× Cable Diameter (dynamic) |
| Pull Tension | 8.3 lbs maximum |
| Voltage Rating | 300 V |
| Capacitance | 25 pF/ft @1 kHz (conductor to conductor) |
| Ground Capacitance | 45 pF/ft @1 kHz |
| Inductance | 0.22 µH/ft |
| Conductor DCR | 66 Ω/1000ft @20°C |
| Shield DCR | 7.6 Ω/1000ft @20°C |
The cable is rated for 300 V.
It operates from -10 °C to 105 °C static, and from +5 °C to 105 °C dynamic.
The maximum pull tension is 8.3 lb.
