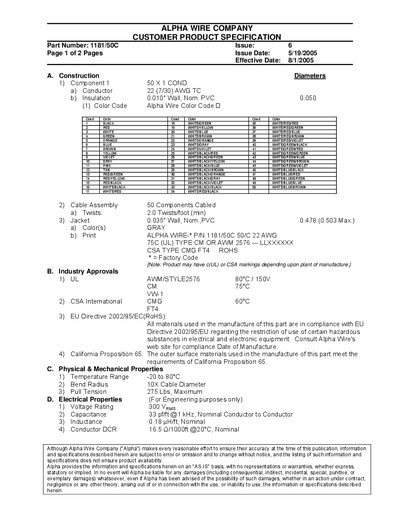

This Alpha Wire product specification provides detailed information on the 1181/50C wire, including construction dimensions, material choices, and color coding. It serves as a reference for engineers and purchasers needing exact product data.
Key sections cover construction details, industry approvals (UL, CSA, RoHS), physical and mechanical properties such as temperature range and bend radius, electrical characteristics like voltage rating and capacitance, and packaging options.
| Part Number | 1181/50C |
|---|---|
| Conductor Size | 22 (7/30) AWG |
| Insulation Wall Thickness | 0.010" |
| Jacket Wall Thickness | 0.035" |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Voltage Rating | 300 Vrms |
| Maximum Pull Tension | 275 Lbs |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| UL Approval | UL AWM/STYLE2576 80°C / 150V |
| CSA Approval | CSA International CMG 60°C |
| RoHS Compliance | EU Directive 2002/95/EC |
The part number is 1181/50C.
The wire is rated for temperatures from -20°C to 80°C.
It is approved under UL AWM/STYLE2576 80°C / 150V and CSA International CMG 60°C.
The wire is offered in 1000 ft, 500 ft, and 100 ft packages.
