The document describes a cable assembly produced by Alpha Wire, which consists of multiple components running parallel under a jacket. The cable has good physical and mechanical properties and is suitable for environments with a temperature range of -20 to 60 degrees Celsius. It complies with EU Directive 2002/95/EC(RoHS) and California Proposition 65 requirements.

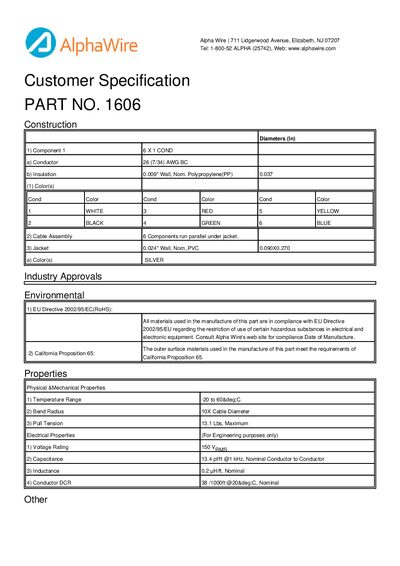

The Alpha Wire 1606 Customer Specification provides detailed construction information for part number 1606, including conductor size, insulation type, color coding, cable assembly layout, and jacket dimensions. It lists the component arrangement, material specifications, and available packaging options.
Physical and mechanical properties such as temperature range, bend radius, and pull tension are given, along with electrical characteristics like voltage rating, capacitance, inductance, and conductor resistance. The document also includes industry approvals, environmental compliance statements, and a RoHS Certificate of Compliance.
| Bend Radius | 10X Cable Diameter |
|---|---|
| Maximum Pull Tension | 13.1 Lbs |
| Voltage Rating | 150 Voe |
| Jacket Size | 0.090 x 0.270 in |
| Packaging (Box 1000 ft) | Available |
| Packaging (Box 328 ft) | Available |
The voltage rating is 150 Voe.
Yes, it complies with the RoHS Directive 2002/95/EC.
It can be shipped in boxes of 1000 ft or 328 ft.
