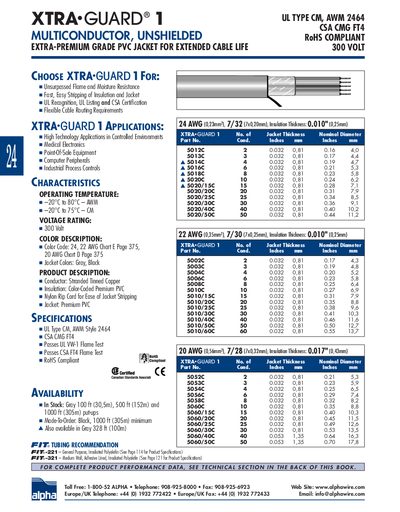

This document describes the features and characteristics of XTRA•GUARD ® 1 multiconductor, unshielded, extra-premium grade PVC jacket cables, including different specifications of conductor count, insulation thickness, and dimensions.
XTRA‑GUARD 1 is a premium‑grade PVC‑jacketed cable designed for high‑technology applications in controlled environments, including medical electronics, point‑of‑sale equipment, computer peripherals, and industrial process controls. It offers superior flame and moisture resistance, easy stripping of insulation, and UL/CSA certifications.
The cable is available in multiple AWG sizes (e.g., 22 AWG, 20 AWG) with gray or black jackets. It meets a voltage rating of 300 V, operates from –20 °C to 80 °C, and features stranded tinned copper conductors with color‑coded premium PVC insulation. Stock lengths range from 100 ft to 1000 ft, and custom orders are accepted.
| Voltage rating | 300 V |
|---|---|
| Conductor material | Stranded tinned copper |
| Insulation type | Color‑coded premium PVC |
| Jacket colors | Gray, Black |
The cable is rated for 300 V.
The cable is offered in gray and black jackets.
