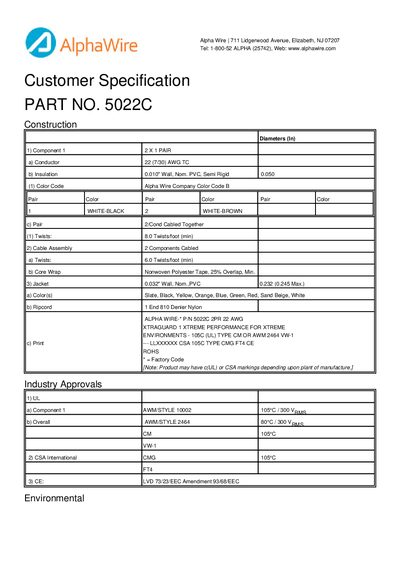

The Alpha Wire 5022C Customer Specification provides detailed information on the construction of the 2‑pair 22 AWG cable, including conductor type, insulation, jacket colors, and twist rates. It also lists industry approvals such as UL, CSA, and CE, and includes RoHS compliance certification.
Key mechanical properties include a temperature range of –20 °C to 105 °C, a bend radius of 10 × cable diameter, and a maximum pull tension of 22 lb. Electrical characteristics cover a 300 V rating, 23.5 pF/ft mutual capacitance at 1 kHz, 0.18 H/m inductance, and a conductor DCR of 16.6 Ω/1000 ft at 20 °C. Packaging options range from bulk to pre‑cut lengths of 100 ft, 500 ft, and 1000 ft.
| Temperature Range | -20 to 105 °C |
|---|---|
| Voltage Rating | 300 V |
| Mutual Capacitance | 23.5 pF/ft @1 kHz |
| Inductance | 0.18 H/m (Nominal) |
| Conductor DCR | 16.6 Ω/1000 ft @20 °C |
| Pull Tension (Maximum) | 22 lb |
| Bend Radius | 10 × cable diameter |
| Packaging Options | Bulk, 100 ft, 500 ft, 1000 ft |
The part is rated for operation from –20 °C up to 105 °C.
It is rated for a maximum voltage of 300 V.
Packaging is offered in bulk, 100 ft, 500 ft, and 1000 ft lengths.
