This document provides specifications for Alpha Wire products, including construction diameters, industry approvals, environmental requirements, physical and mechanical properties, and electrical properties.

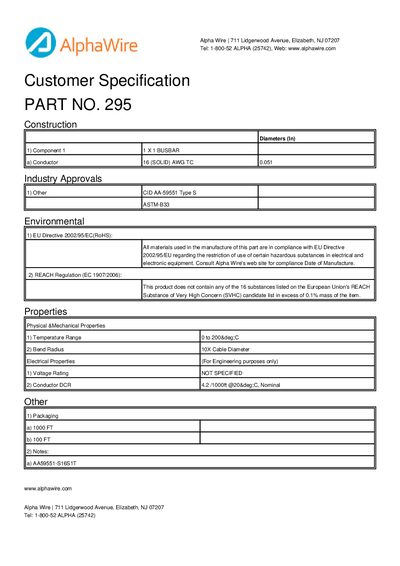

The document provides the construction details for Alpha Wire part 295, including a 1×1 busbar with a 16 AWG solid conductor (0.051 mm). It lists physical and mechanical properties such as a temperature range of 0 °C to 200 °C and a bend radius of 10 × the cable diameter, as well as electrical data like a conductor DCR of 4.2 Ω/1000 ft at 20 °C.
Industry approvals are noted, including CID AA-59551 Type S and ASTM‑B33, and the product complies with EU RoHS Directive 2002/95/EC and REACH regulations. Packaging options are 100 ft and 1000 ft lengths, and the document includes a RoHS certificate of compliance confirming limits for lead, mercury, cadmium, and hexavalent chromium.
| Conductor size | 16 AWG solid (0.051 mm) |
|---|---|
| Bend radius | 10 × cable diameter |
| Voltage rating | Not specified |
| Packaging length | 100 ft or 1000 ft |
The part is available in 100 ft and 1000 ft packaging lengths.
