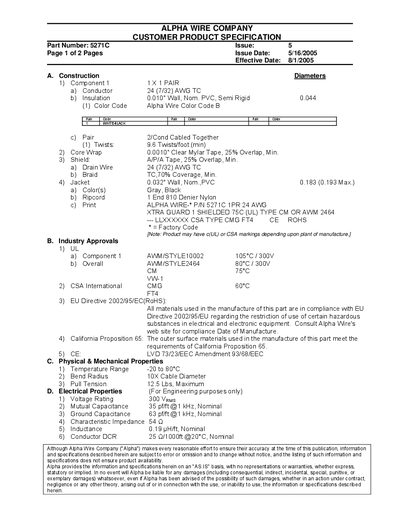

The Alpha Wire 5271C Customer Product Specification provides detailed information on the wire's construction, including conductor size, insulation type, and shielding. It also lists industry approvals such as UL, CSA, EU RoHS, California Proposition 65, and CE compliance.
Physical and mechanical properties like temperature range, bend radius, and pull tension are given, along with electrical characteristics such as voltage rating, characteristic impedance, and capacitance. Packaging options and ordering details are included at the end of the document.
| Conductor size | 24 AWG |
|---|---|
| Insulation wall thickness | 0.010" PVC |
| Temperature range | -20 to 80°C |
| Voltage rating | 300 Vrms |
| Characteristic impedance | 54 Ω |
| Pull tension (max) | 12.5 lbs |
The voltage rating is 300 Vrms.
It operates from –20 °C to 80 °C.
Packaging is offered in 1000 ft, 500 ft, 100 ft reels, or bulk made‑to‑order.
