The document describes the features and characteristics of a multi-conductor, foil shield PVC cable. The cable has an operating temperature range of -20°C to 80°C, a voltage rating of 300 volts, a gray jacket color, stranded tinned copper conductors, color-coded PVC insulation, aluminum/polyester foil shield, tinned copper drain wire, and PVC jacket.

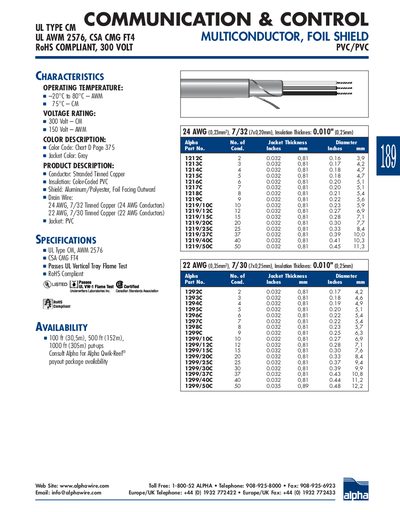

The Alpha UL Type CM UL AWM 2576 CSA CMG FT4 is a PVC‑jacketed, multiconductor wire that meets UL Type CM, UL AWM 2576 and CSA CMG FT4 standards. It is RoHS compliant and rated for up to 300 V (CM) or 150 V (AWM) operation.
Key characteristics include a -20 °C to 80 °C operating temperature range, stranded tinned copper conductors, color‑coded PVC insulation, an aluminum‑polyester foil shield, and PVC jacket. Various AWG sizes are offered with lengths ranging from 100 ft to 1000 ft.
| Voltage Rating (CM) | 300 V |
|---|---|
| Conductor | Stranded Tinned Copper |
| Shield | Aluminum Polyester, Foil Facing Outward |
| Jacket Material | PVC |
| RoHS Compliance | Yes |
Yes, the wire is RoHS compliant.
The CM version is rated for 300 V, while the AWM version is rated for 150 V.
