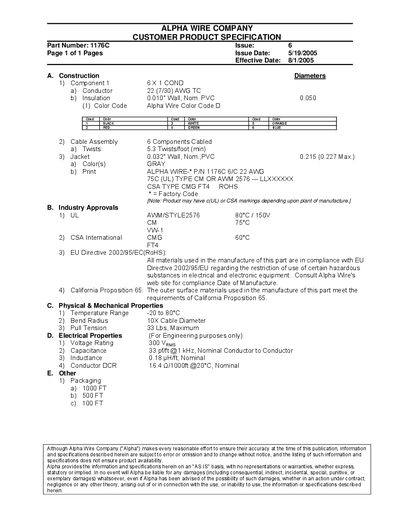

This specification sheet describes the Alpha Wire 1176C 6x1 COND wire, including its construction details such as conductor size, insulation and jacket dimensions, and color coding. It also lists the physical and mechanical properties, electrical characteristics, and available packaging lengths.
The document provides industry approvals (UL, CSA, EU RoHS, California Proposition 65) and outlines the temperature range, voltage rating, capacitance, inductance, and pull tension limits for engineering use.
| Conductor size | 22 AWG TC |
|---|---|
| Insulation wall thickness | 0.010" (Nom. PVC 0.050) |
| Jacket wall thickness | 0.032" (Nom. PVC 0.215, Max 0.227) |
| Temperature range | -20 to 80°C |
| Voltage rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Conductor DCR | 16.4 Ω·mil/ft @20°C |
| Pull tension (max) | 33 lbs |
| Bend radius | 10× cable diameter |
The wire is rated for 300 Vrms.
It can be used from –20 °C up to 80 °C.
Packaging is offered in 100 ft, 500 ft, and 1000 ft lengths.
