Heat shrinkable tubing is made of cross linked polyolefin (XLPE), available in black, white, clear, red, yellow, blue and green colors. It conforms to UL Standard 224, CSA International Standard 198 and AMS-DTL-23053/5 standards.

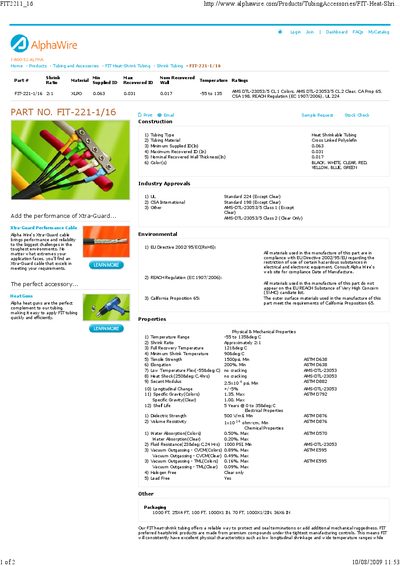

The Alpha Wire FIT-221-1/16 is a cross‑linked polyolefin heat‑shrink tubing designed for harsh environments. It offers a 2:1 shrink ratio, a minimum supplied ID of 0.063 in, and a maximum recovered ID of 0.031 in, with a nominal wall thickness of 0.017 in. The product is available in multiple colors and meets a range of industry approvals including UL 224 and CSA 198.
The data sheet provides detailed physical, mechanical, electrical, and chemical properties, as well as compliance information for RoHS, REACH, and California Proposition 65. Packaging options and a certificate of compliance are also included to aid in selection and regulatory documentation.
| Shrink Ratio | Approximately 2:1 |
|---|---|
| Minimum Supplied ID | 0.063 in |
| Maximum Recovered ID | 0.031 in |
| Nominal Recovered Wall Thickness | 0.017 in |
| UL Standard | UL 224 (except clear) |
| CSA Standard | CSA 198 (except clear) |
| Lead Content | ≤0.1 % by weight |
The FIT-221-1/16 tubing has an approximate shrink ratio of 2:1.
Yes, the FIT-221-1/16 tubing is RoHS‑compliant, effective from 12/1/2004 production.
