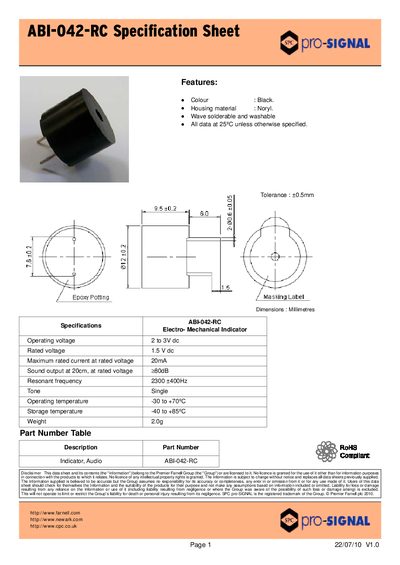

This data sheet provides information about the ABI-042-RC product, including color, housing material, wave soldering and cleaning, dimensions, model number, etc.
The ABI-042-RC is an electro‑mechanical audio indicator supplied by Pro Signal. It features a black Noryl housing, wave‑solderable and washable construction, and is designed for operation at low voltages.
Key specifications include a 2‑3 V operating voltage range, 20 mA maximum rated current, sound output up to 80 dB at 20 cm, and an operating temperature range of –30 °C to +70 °C. The device weighs 2.09 g and complies with RoHS directives.
| Colour | Black |
|---|---|
| Housing material | Noryl |
| Operating voltage | 2 to 3 V |
| Rated voltage | 1.5 V |
| Maximum rated current | 20 mA |
| Sound output | ≥80 dB at 20 cm |
| Resonant frequency | 2300 ± 400 Hz |
| Tone | Single |
| Operating temperature | -30 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Weight | 2.09 g |
| Part number | ABI-042-RC |
The ABI-042-RC operates from 2 V to 3 V.
It can handle up to 20 mA at the rated voltage.
It operates between –30 °C and +70 °C and can be stored between –40 °C and +85 °C.
The device produces at least 80 dB at a distance of 20 cm.
