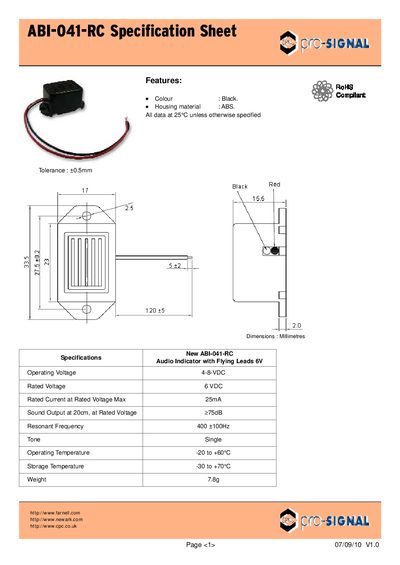

ABI-041-RC is a audio indicator from Farnell, with a rated voltage of 6V and a rated current of 25mA and a weight of 7.8g.
The ABI-041-RC is an audio indicator with flying leads designed for use in electronic equipment. It features a black ABS housing, RoHS compliance, and a tolerance of 0.5 mm.
Key specifications include a 4‑8 VDC operating voltage, 6 VDC rated voltage, up to 25 mA rated current, >75 dB sound output at 20 cm, resonant frequency around 400 Hz, and operating temperatures from –20 °C to +60 °C. The device weighs 7.89 g and is supplied in a compact form factor.
| Operating Voltage | 4-8 VDC |
|---|---|
| Rated Voltage | 6 VDC |
| Rated Current at Rated Voltage | Max 25 mA |
| Sound Output | >75 dB at 20 cm |
| Resonant Frequency | 400 ± 100 Hz |
| Tone | Single |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -30 °C to +70 °C |
| Weight | 7.89 g |
| Colour | Black |
| Housing Material | ABS |
| Tolerance | 0.5 mm |
The ABI-041-RC operates from 4 VDC to 8 VDC.
It produces a sound level greater than 75 dB measured at 20 cm.
It can operate between –20 °C and +60 °C.
The maximum rated current at the rated voltage is 25 mA.
