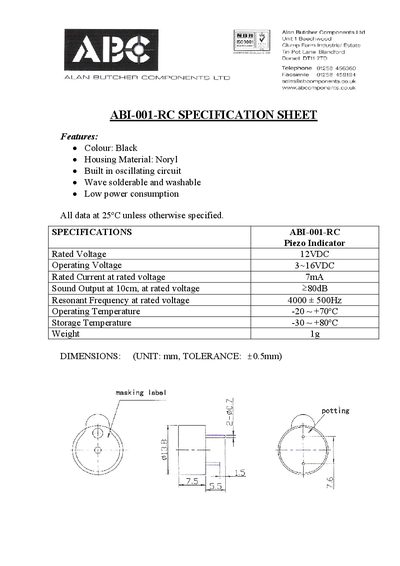

ABI-001-RC Specification Sheet, Product features: Color Black, Housing Material Noryl, Built-in Oscillating Circuit, Wave Solderable and Washable, Low Power Consumption. All data at 25°C unless otherwise specified.
The ABI-001-RC is a black piezo indicator housed in Noryl material, featuring a built‑in oscillating circuit, wave‑solderable and washable construction, and low power consumption. It is designed for operation at a wide voltage range and provides a high‑level audible output.
Key specifications include a rated voltage of 12 VDC, operating voltage range of 3‑16 VDC, rated current of 7 mA, sound output of 280 dB at 10 cm, resonant frequency around 4 kHz, operating temperature from –20 °C to +70 °C, storage temperature from –30 °C to +80 °C, and a weight of 1 g.
| Rated Voltage | 12VDC |
|---|---|
| Operating Voltage | 3~16VDC |
| Rated Current | 7 mA |
| Sound Output | 280 dB at 10 cm |
| Resonant Frequency | 4000 + 500 Hz |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Weight | 1 g |
| Colour | Black |
| Housing Material | Noryl |
The ABI-001-RC is rated at 12 VDC.
It operates from 3 VDC up to 16 VDC.
At the rated voltage, it produces 280 dB measured at 10 cm.
It operates between –20 °C and +70 °C and can be stored from –30 °C to +80 °C.
