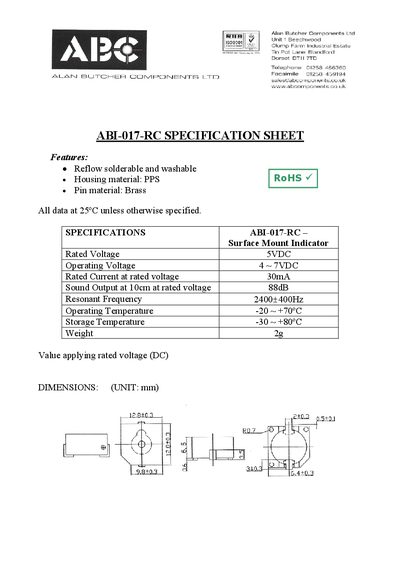

ABI-017-RC SPECIFICATION SHEET is a specification sheet for ABI products, which contains information on product characteristics, specifications, temperature range, etc.
The ABI-017-RC is a surface‑mount indicator featuring a reflow‑solderable, washable design with a PPS housing and brass pins. It is intended for use in electronic assemblies where a compact visual status indicator is required.
Key electrical characteristics include a rated voltage of 5 VDC, operating voltage range of 4‑7 VDC, and a rated current of 30 mA. The device delivers 88 dB sound output at 10 cm when powered at its rated voltage and operates reliably from –20 °C to +70 °C.
| Rated Voltage | 5 VDC |
|---|---|
| Operating Voltage | 4~7 VDC |
| Rated Current | 30 mA |
| Sound Output | 88 dB at 10 cm |
| Resonant Frequency | 2400 + 400 Hz |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Weight | 2 g |
The ABI-017-RC is rated at 5 VDC.
It operates from –20 °C up to +70 °C.
The indicator produces 88 dB at a distance of 10 cm when powered at its rated voltage.
