This product is a copper wire with ETFE insulation, which has good conductivity and insulation.

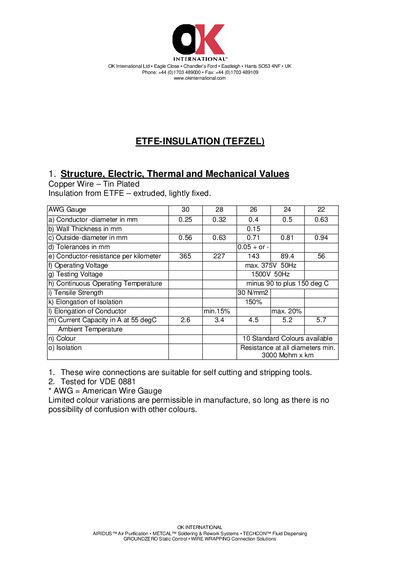

This one‑page leaflet provides detailed values for the ETFE‑INSULATION (TEFZEL) wire, including conductor dimensions, resistance, voltage limits, temperature range, tensile strength, elongation and current capacity. It also lists material details such as tin‑plated copper conductors and extruded ETFE insulation.
The product is tested to VDE 0881 standards, is suitable for self‑cutting and stripping tools, and offers ten standard colour options while limiting colour variations to avoid confusion.
| Conductor diameter (mm) | 0.25‑0.63 |
|---|---|
| Wall thickness (mm) | 0.15 |
| Outside diameter (mm) | 0.56‑0.94 |
| Conductor resistance per km (Ω) | 365‑56 |
| Maximum operating voltage | 375 V (50 Hz) |
| Testing voltage | 1500 V (50 Hz) |
| Continuous operating temperature | -90 °C to +150 °C |
| Tensile strength | 30 N/mm² |
| Elongation of isolation | 150 % |
| Elongation of conductor | 15 %‑20 % |
| Current capacity at 55 °C (A) | 2.6‑5.7 |
| Minimum insulation resistance | 3000 MΩ·km |
| Standard colour options | 10 |
| Conductor type | Tin‑plated copper wire |
| Insulation material | Extruded ETFE |
The maximum operating voltage is 375 V at 50 Hz.
It can operate continuously from –90 °C up to +150 °C.
Ten standard colours are available.
