This document introduces the features and characteristics of the SKINTOP MS-SC-M-V-XL series cable glands. It is suitable for cables and wires with or without inner sheaths. The product is also suitable for continuing the cable screen to another connection. Low resistance screen contact, optimal EMC protection. High conductive, flexible EMC contact for clamping of various screen diameters. Few operation steps, easy to assemble.

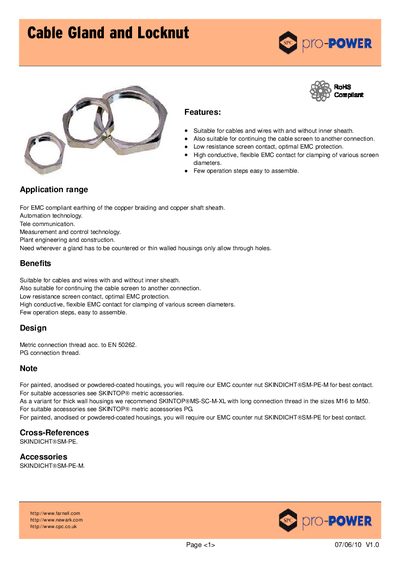

The cable gland and locknut series from Pro-Power is designed for EMC‑compliant earthing of copper braiding and shaft sheaths across a range of industries, including automation, telecommunication, measurement and control, and plant engineering. It offers low‑resistance screen contact, high conductivity, and flexible clamping for various screen diameters, with a simple assembly process.
Technical data includes nickel‑plated brass bodies, polyamide inserts, NBR O‑rings, IP68‑5 bar protection, and an operating temperature range of –30 °C to +100 °C. The products follow metric connection thread standards (EN 50262) and are available in sizes from M12 to M50, with optional accessories for painted or coated housings.
| Body material | Nickel plated brass |
|---|---|
| Insert material | Polyamide |
| Seal material | NBR O‑ring |
| Degree of protection | IP68‑5 bar (IP68) |
| Operating temperature range | -30 °C to +100 °C |
| Thread standard | Metric connection thread EN 50262 |
The body is made of nickel‑plated brass.
It can be used from –30 °C up to +100 °C.
It has an IP68‑5 bar rating (IP68).
It uses a metric connection thread according to EN 50262.
