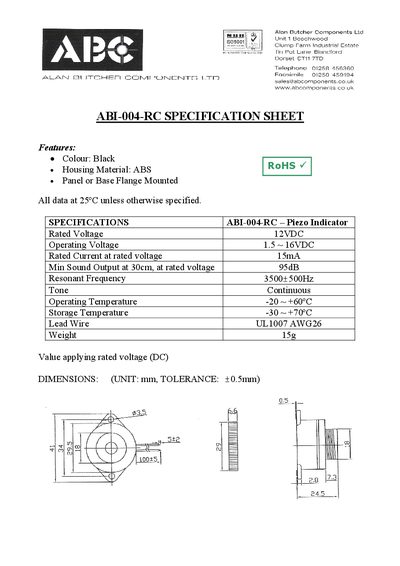

ABI-004-RC Specification Sheet
The ABI-004-RC is a compact piezo indicator designed for visual and audible alerts. It features a black ABS housing and can be mounted on a panel or base flange.
Key specifications include a 12 VDC rated voltage, 15 mA rated current, 95 dB minimum sound output at 30 cm, and an operating temperature range of –20 °C to +60 °C. The device is RoHS compliant and weighs only 15 g.
| Colour | Black |
|---|---|
| Housing Material | ABS |
| Rated Voltage | 12VDC |
| Operating Voltage | 1.5 ~ 16VDC |
| Rated Current | 15mA |
| Min Sound Output | 95dB at 30cm |
| Resonant Frequency | 3500+500Hz |
| Tone | Continuous |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -30 ~ +70°C |
| Lead Wire | UL1007 AWG26 |
| Weight | 15g |
The ABI-004-RC is rated at 12 VDC.
It produces a minimum sound output of 95 dB at 30 cm when powered at the rated voltage.
The device operates from –20 °C to +60 °C and can be stored from –30 °C to +70 °C.
