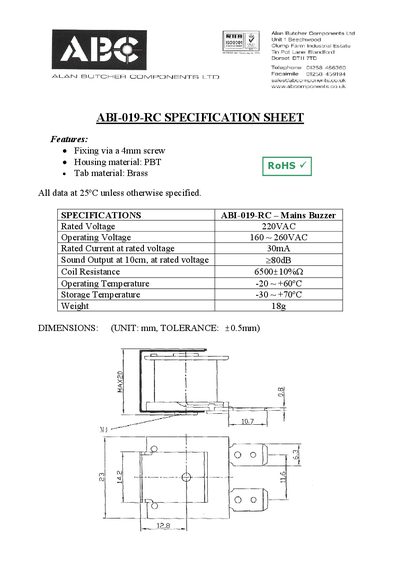

This data sheet introduces the features of ABI-019-RC, including fixing method, housing material, rated voltage, rated current, sound output, resistance, working temperature, storage temperature, weight and dimensions.
The ABI-019-RC is a mains‑powered buzzer designed for audible alerts in industrial equipment. It is housed in a PBT enclosure with a brass tab and mounts using a 4 mm screw.
At a rated voltage of 220 VAC, the buzzer draws 30 mA, operates from 160 to 260 VAC, and produces 280 dB sound at 10 cm. It weighs 18 g, tolerates operating temperatures from –20 °C to +60 °C, and can be stored between –30 °C and +70 °C.
| Rated Voltage | 220VAC |
|---|---|
| Operating Voltage | 160 ~ 260VAC |
| Rated Current | 30mA |
| Sound Output | 280dB at 10cm |
| Coil Resistance | 6500410%Q |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -30 ~ +70°C |
| Weight | 18g |
It is fixed via a 4 mm screw.
The housing material is PBT.
The rated voltage is 220 VAC.
