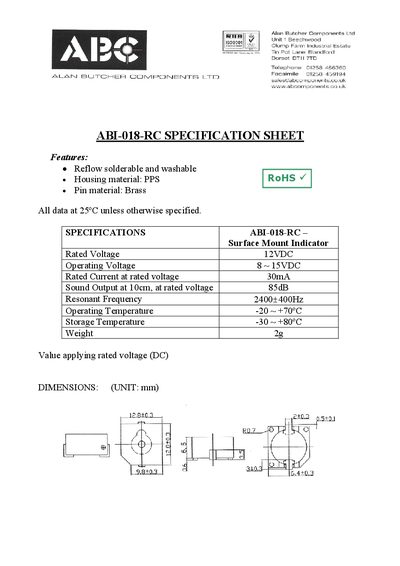

This document is ABI-018-RC product specification sheet
The ABI-018-RC is a surface‑mount indicator designed for reflow soldering and washable applications. It features a PPS RoHS Vv housing and brass pins, providing reliable performance in compact electronic assemblies.
Key specifications include a 12 VDC rated voltage, 30 mA rated current, 85 dB sound output at 10 cm, and a resonant frequency around 2400 Hz. The device operates between –20 °C and +70 °C, can be stored from –30 °C to +80 °C, and weighs only 2 g.
| Rated Voltage | 12VDC |
|---|---|
| Operating Voltage | 8 ~ 1S5VDC |
| Rated Current | 30mA |
| Sound Output | 85dB at 10 cm (rated voltage) |
| Resonant Frequency | 2400+400Hz |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Weight | 2g |
| Housing Material | PPS RoHS Vv |
| Pin Material | Brass |
| Reflow Solderable | Yes, washable |
The ABI-018-RC is rated at 12 VDC.
It produces a sound output of 85 dB at 10 cm when powered at its rated voltage.
It operates from –20 °C to +70 °C.
