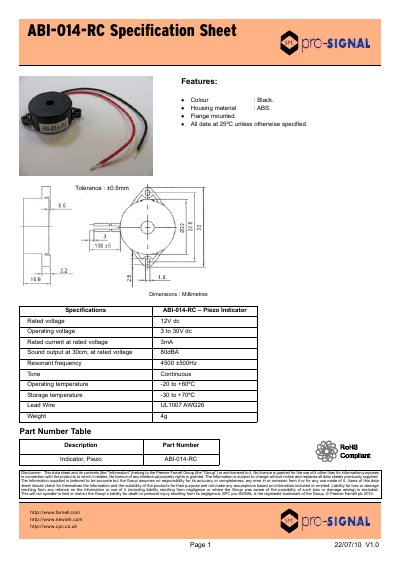

ABI-014-RC specification sheet, contains information such as product color, housing material and mounting method
The ABI-014-RC is a black, ABS‑housing, flange‑mounted piezo indicator supplied by Premier Farnell. It operates from a low voltage DC supply and provides a continuous tone output.
The data sheet lists the rated and operating voltages, current consumption, sound pressure level, resonant frequency, temperature ranges, lead wire type, weight and other mechanical details. All values are measured at 25 °C unless otherwise noted.
| Rated voltage | 12 V dc |
|---|---|
| Operating voltage | 3 to 30 V dc |
| Rated current | 3 mA |
| Sound output | 80 dBA at 30 cm (rated voltage) |
| Resonant frequency | 4500 ± 500 Hz |
| Tone | Continuous |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -30 °C to +70 °C |
| Lead wire | UL1007 AWG26 |
| Weight | 4 g |
| Colour | Black |
| Housing material | ABS |
| Tolerance | ±0.5 mm |
The rated voltage is 12 V dc.
It can be powered from 3 V to 30 V dc.
It produces a sound output of 80 dBA measured at 30 cm.
The resonant frequency is 4500 ± 500 Hz.
