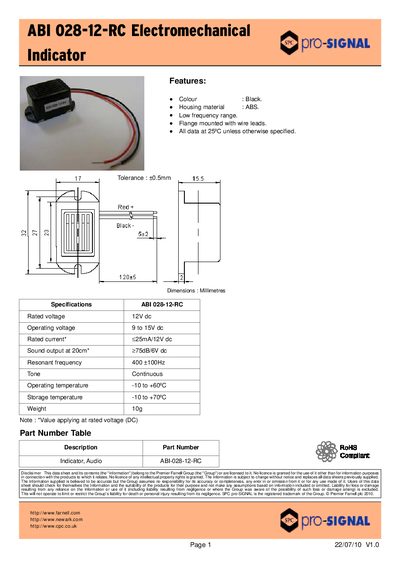

This is an ABI-028-12-RC electromechanical indicator datasheet provided by Premier Farnell Group. It contains information such as product dimensions, model number, features and so on.
The ABI 028-12-RC is an electromechanical indicator with a black ABS housing, flange‑mounted with wire leads and a low‑frequency range. It operates from 9 V to 15 V DC, drawing 25 mA at its rated 12 V.
The data sheet provides detailed specifications, RoHS compliance information, and part number details. It is supplied by the Premier Farnell Group and carries the Pro SIGNAL trademark.
| Rated voltage | 12 V DC |
|---|---|
| Operating voltage | 9 V to 15 V DC |
| Rated current | 25 mA @ 12 V DC |
| Sound output at 20 cm | >75 dB @ 6 V DC |
| Resonant frequency | 400 ± 100 Hz |
| Tone | Continuous |
| Operating temperature | -10 °C to +60 °C |
| Storage temperature | -10 °C to +70 °C |
| Weight | 10 g |
| Colour | Black |
| Housing material | ABS |
The rated voltage is 12 V DC.
It operates from –10 °C to +60 °C.
Yes, the indicator is RoHS compliant.
It produces a sound output greater than 75 dB at 6 V.
