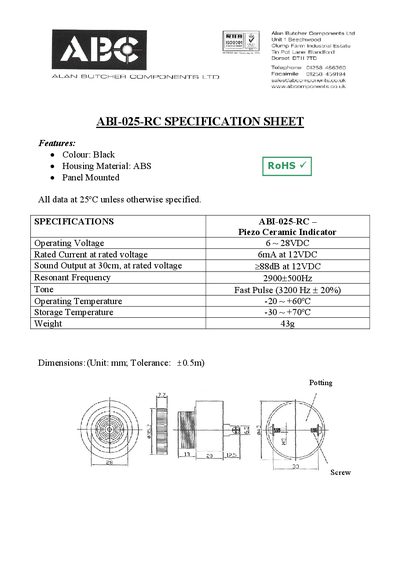

This document is ABI-025-RC's specification sheet, which contains product features, technical parameters and other information.
The ABI-025-RC is a piezo ceramic indicator supplied by Alan Butcher Components. It is designed for panel mounting and operates from 6 to 28 VDC.
Key specifications include a rated current of 60 mA at 12 VDC, sound output of 288 dB measured at 30 cm, resonant frequency around 2.9 kHz, operating temperature from –20 °C to +60 °C, storage temperature from –30 °C to +70 °C, weight of 43 g and dimensions in millimetres with a tolerance of ±0.5 mm.
| Operating Voltage | 6 ~ 28 VDC |
|---|---|
| Rated Current (12 VDC) | 60 mA |
| Sound Output (30 cm, 12 VDC) | 288 dB |
| Resonant Frequency | 2900+500 Hz |
| Tone Fast Pulse | 3200 Hz + 20% |
| Operating Temperature | -20 ~ +60 °C |
| Storage Temperature | -30 ~ +70 °C |
| Weight | 43 g |
| Dimensions | mm (tolerance ±0.5 m) |
The device operates from 6 VDC up to 28 VDC.
The rated current is 60 mA when supplied with 12 VDC.
It produces a sound output of 288 dB measured at a distance of 30 cm with the rated voltage.
It operates between –20 °C and +60 °C and can be stored between –30 °C and +70 °C.
