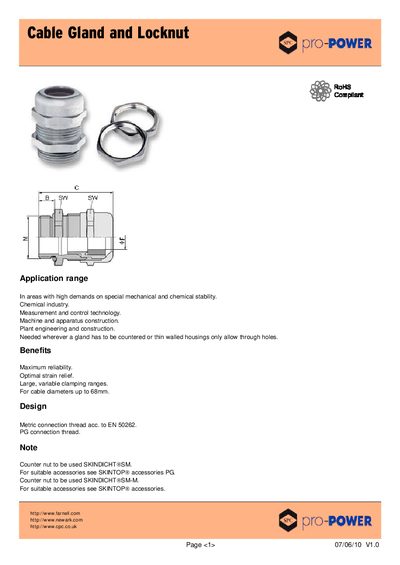

This product is a cable gland and locknut, suitable for chemical industry, measurement and control technology, machine and apparatus construction, plant engineering and construction, etc., with maximum capacity of 68mm cable diameter
The CS OfO-POWER cable gland and locknut is designed for applications that require high mechanical and chemical stability, such as the chemical industry, measurement and control technology, and plant engineering. It offers a maximum cable diameter of up to 68 mm and a large, variable clamping range.
The product features a metric connection thread (EN 50262) with a PG thread, nickel‑plated brass body, polyamide insert, and NBR O‑ring seal. It is rated IP68‑10 bar (with IP69 K pending) and operates from –30 °C to +100 °C. Approvals include UL, CSA, and DNV (pending for size M75 × 1.5).
| Connection thread | Metric connection thread acc. to EN 50262 |
|---|---|
| Thread type | PG |
| Maximum cable diameter | 68 mm |
| Body material | Nickel plated brass |
| Insert material | Polyamide |
| Seal material | NBR O‑ring |
| IP rating | IP68‑10 bar (IP69 K pending, IP68‑5 bar) |
| Operating temperature | -30 °C to +100 °C |
| Approvals | UL, CSA, DNV (pending for size M75 × 1.5) |
It can accommodate cable diameters up to 68 mm.
The gland is rated IP68‑10 bar, with IP69 K pending and also IP68‑5 bar.
The body is made of nickel‑plated brass.
It has UL, CSA, and DNV approvals, with DNV pending for size M75 × 1.5.
