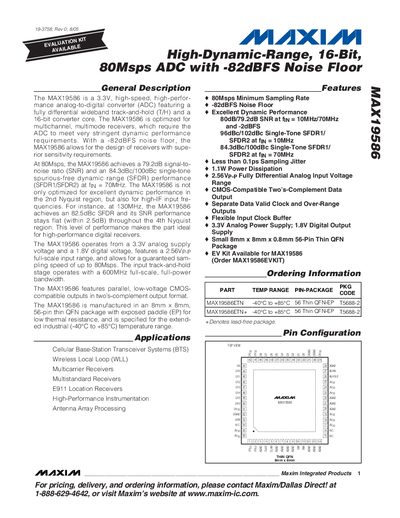

The MAX19586 is a high-performance, 3.3V, 16-bit analog-to-digital converter (ADC) featuring a fully differential wideband track-and-hold (T/H) and an ultra-low noise floor. The MAX19586 is optimized for multichannel, multimode receivers, which require the ADC to meet very stringent dynamic performance requirements. With a -82dBFS noise floor, the MAX19586 allows for the design of receivers with superior sensitivity requirements. At 80Msps, the MAX19586 achieves a 79.2dB signal-to-noise ratio (SNR) and an 84.3dBc/100dBc single-tone spurious-free dynamic range (SFDR) performance (SFDR1/SFDR2) at fIN = 70MHz. The MAX19586 is not only optimized for excellent dynamic performance in the 2nd Nyquist region, but also for high-IF input fre- quencies. For instance, at 130MHz, the MAX19586 achieves an 82.5dBc SFDR and its SNR performance stays flat (within 2.5dB) throughout the 4th Nyquist region. This level of performance makes the part ideal for high-performance digital receivers. The MAX19586 operates from a 3.3V analog supply voltage and a 1.8V digital voltage, features a 2.56VP-P full-scale input range, and allows for a guaranteed sam- pling speed of up to 80Msps. The input track-and-hold stage operates with a 600MHz full-scale, full-power bandwidth. The MAX19586 features parallel, low-voltage CMOS- compatible outputs in two’s-complement output format. The MAX19586 is manufactured in an 8mm x 8mm, 56-pin thin QFN package with exposed paddle (EP) for low-cost circuit board assembly.
The MAX19586 is a high‑dynamic‑range, 16‑bit analog‑to‑digital converter optimized for multichannel, multimode receivers. It operates from a 3.3 V analog and 1.8 V digital supply, delivering up to 80 Msps sampling rate and a -82 dBFS noise floor.
The device is offered in a 56‑pin thin QFN package (8 mm × 8 mm) and includes features such as a fully differential track‑and‑hold, CMOS‑compatible two’s‑complement outputs, and extensive timing specifications. Detailed electrical characteristics, absolute maximum ratings, and typical operating curves are provided.
| Maximum Sampling Rate | 80 Msps |
|---|---|
| Resolution | 16 bits |
| Noise Floor | -82 dBFS |
| Analog Input Range | 2.56 Vp‑p (fully differential) |
| Analog Supply Voltage | 3.3 V (typical) |
| Digital Supply Voltage | 1.8 V (typical) |
| Power Dissipation | ≈1.1 W |
| Package | 56‑pin thin QFN, 8 mm × 8 mm |
The MAX19586 can sample at up to 80 Msps.
The device achieves a noise floor of -82 dBFS.
It is supplied in a 56‑pin thin QFN package measuring 8 mm × 8 mm.
The analog supply is 3.3 V and the digital supply is 1.8 V.
