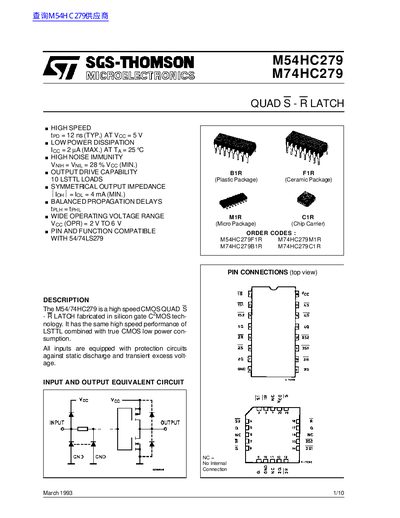

M54/74HC279 is a high speed CMOS QUAD S-R LATCH fabricated in silicon gate C2MOS technology.
The M54HC279 is a high‑speed CMOS quad S‑R latch fabricated in silicon‑gate CMOS technology. It combines LSTTL‑level speed with true CMOS low‑power consumption and includes input protection against static discharge and transient over‑voltage.
The device operates from a supply voltage of –0.5 V to +7 V, supports a propagation delay as low as 2 ns (typical), and can drive up to 10 LSTTL loads. It is specified for temperatures from –55 °C to +125 °C and offers symmetrical output impedance and balanced propagation delays.
| Supply voltage range | -0.5 V to +7 V |
|---|---|
| Output drive capability | 10 LSTTL loads |
| Power dissipation | 500 mW |
| Operating temperature range | -55 °C to +125 °C |
It can operate with a supply voltage from –0.5 V up to +7 V.
The output can drive up to 10 LSTTL loads.
The device is rated for temperatures from –55 °C to +125 °C.
