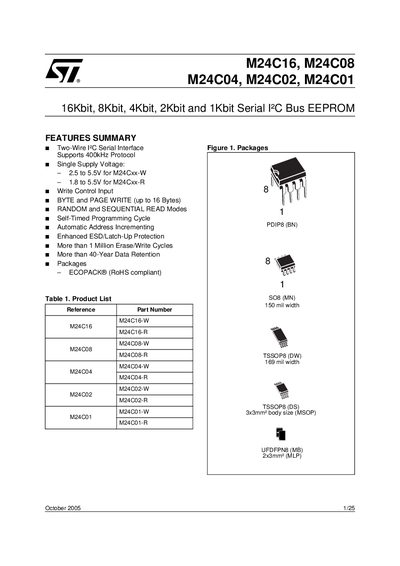

Introduces the features and characteristics of M24C16, M24C08, M24C04, M24C02, M24C01 16Kbit, 8Kbit, 4Kbit, 2Kbit and 1Kbit Serial I²C Bus EEPROM, including two-wire I²C serial interface, 400kHz protocol, single supply voltage, write control input, byte and page write (up to 16 bytes), random and sequential read modes, self-timed programming cycle, automatic address incrementing, enhanced ESD/Latch-Up protection, more than 1 million erase/write cycles, more than 40 years of data retention time
The M24C16, M24C08, M24C04, M24C02 and M24C01 are I²C‑compatible serial EEPROM devices offered in various ECOPACK® packages. They operate from a single supply voltage and support up to 400 kHz I²C bus speed. The datasheet provides detailed electrical characteristics, timing diagrams, and package mechanical data.
Key features include more than 1 million erase/write cycles, over 40 years of data retention, and multiple voltage options (2.5‑5.5 V for W‑type, 1.8‑5.5 V for R‑type). The document also outlines device internal reset behavior, signal descriptions, write and read operation sequences, and part numbering for ordering.
| Memory Capacity | 16 Kbit, 8 Kbit, 4 Kbit, 2 Kbit, 1 Kbit |
|---|---|
| Supply Voltage (W‑type) | 2.5 V to 5.5 V |
| I²C Bus Speed | Up to 400 kHz |
| Erase/Write Cycles | > 1 Million |
| Data Retention | > 40 Years |
| Operating Temperature (Industrial) | ‑40 °C to 85 °C |
| Operating Temperature (Automotive) | ‑40 °C to 125 °C |
They support a maximum I²C bus speed of 400 kHz.
The devices are rated for more than one million erase/write cycles.
Data can be retained for more than 40 years.
The W‑type devices need 2.5 V to 5.5 V, while the R‑type devices operate from 1.8 V to 5.5 V.
