TL082 is a high performance dual operational amplifier with wide common-mode voltage range, low input bias and offset current, and output short-circuit protection.

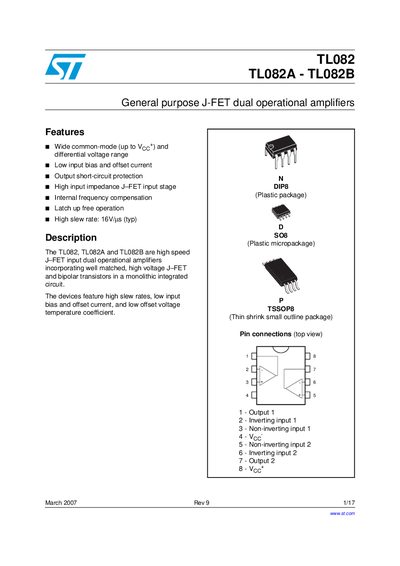

The TLO82, TLO82A and TLO82B are high‑speed, dual J‑FET input operational amplifiers with wide common‑mode range, low input bias and offset currents, and built‑in output short‑circuit protection. They are offered in DIP‑8, plastic micropackage and TSSOP‑8 packages and are intended for general‑purpose analog signal processing.
The document provides a schematic diagram, pin‑out description, absolute maximum ratings, operating conditions, and detailed electrical characteristics such as supply voltage range, slew rate, gain‑bandwidth product, input offset voltage, and output short‑circuit current. Revision history and legal notices are also included.
| Supply voltage (VCC) | 6 V to 36 V |
|---|---|
| Slew rate | 16 V/µs (typ) |
The devices operate with a supply voltage from 6 V up to 36 V.
The typical slew rate is 16 V/µs.
Yes, they feature output short‑circuit protection with an infinite short‑circuit duration rating.
