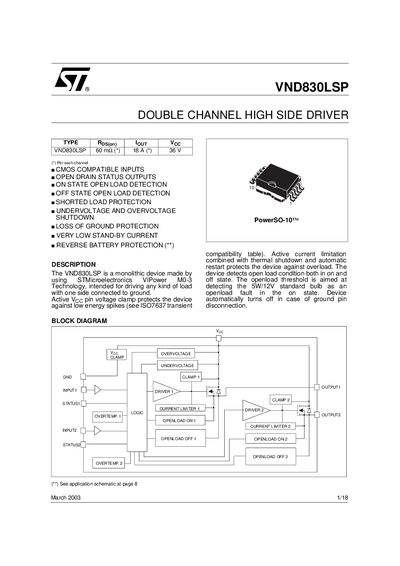

VND830LSP is a high side double channel driver with CMOS compatible inputs, open drain status outputs, open load detection, short circuit load protection, under voltage and over voltage shutdown, leakage protection, low standby current, reverse battery protection
The VND830LSP is a monolithic double‑channel high‑side driver made with STMicroelectronics ViPower MOS technology. It is intended for driving loads with one side connected to ground and includes a range of protection features such as over‑/undervoltage shutdown, open‑load detection, shorted‑load protection, reverse‑battery protection, and thermal shutdown.
The device operates from a 5.5 V to 36 V supply, can source up to 2 A per channel, and provides CMOS‑compatible inputs. Detailed electrical characteristics, thermal data, switching waveforms, and application schematics are provided for designers.
| Operating Supply Voltage (VCC) | 5.5 V – 36 V |
|---|---|
| Input Current | ±10 mA |
| Status Pin Current | ±10 mA |
| Junction‑to‑Case Thermal Resistance | 2 °C/W |
| Junction‑to‑Ambient Thermal Resistance | 5.2 °C/W |
| Input Low Level Voltage | 1.25 V |
| Input High Level Voltage | 3.25 V |
The device operates from 5.5 V up to 36 V.
