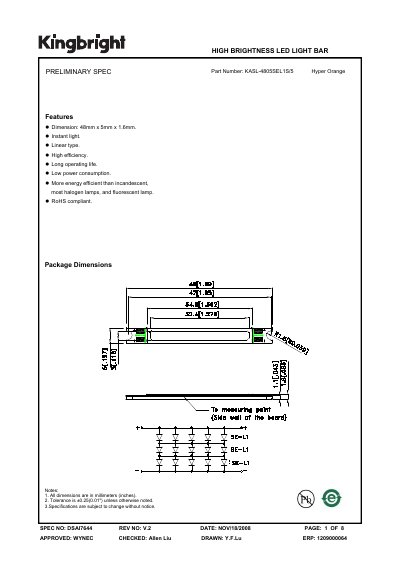

This document provides detailed specifications for KASL-4805SEL1S/5 Hyper Orange, including appearance size, features and characteristics, and precautions
The KASL-4805SEL1S/5 is a high‑brightness LED light bar offered by Kingbright. It measures 48 mm × 5 mm × 1.6 mm and provides instant, linear illumination with high efficiency, long life and low power consumption. The device is RoHS compliant and designed for use with a constant‑current source.
The document lists detailed electrical and optical characteristics, maximum ratings, handling precautions, and recommended thermal‑management procedures, including the use of thermal grease and appropriate heat‑sink sizing for reliable operation.
| Dimensions | 48 mm × 5 mm × 1.6 mm |
|---|---|
| Forward Current (IF) | 500 mA |
| Dominant Wavelength | 618 nm |
| Thermal Resistance (junction‑case) | 3.5 °C/W |
| Maximum Power Dissipation | 4.6 W |
| Maximum Junction Temperature | 110 °C |
| Operating Temperature Range | -30 °C to +100 °C |
The soldering temperature should be kept below 350 °C.
A constant‑current source is recommended for powering the LED light bar.
M2 screws are recommended for fixing the LED light bar.
