KINGBRIGHT P/N: KAA-3528SRSGC SUPER BRIGHT RED SUPER BRIGHT GREEN 3.5x2.8mm SURFACE MOUNT LED LAMP

This document is about the specification of KAA-3528SRSGC LED LAMP

Brand: Kingbright
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 143 KB
Published: 07 May, 2012
Updated: 30 September, 2023
MD5 checksum: C6BD9C2825F14A5F1F3C5A7473CB0717
PDF: KINGBRIGHT P/N: KAA-3528SRSGC SUPER BRIGHT RED SUPER BRIGHT GREEN 3.5x2.8mm SURFACE MOUNT LED LAMP PDF

About this manual

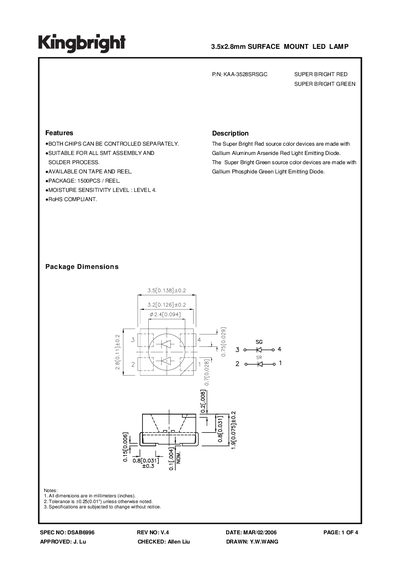

The Kingbright KAA-3528SRSGC is a 3.5 × 2.8 mm surface‑mount LED lamp available in Super Bright Red (GaAlAs) and Super Bright Green (GaP). The device features individually controllable chips, RoHS compliance, and is supplied on tape and reel (1500 pcs per reel).

The datasheet provides detailed electrical and optical characteristics such as forward voltage, peak forward current, power dissipation, and operating temperature range, as well as a recommended reflow soldering profile for lead‑free SMT processes.

What's inside

Features
Package Dimensions
Description
Selection Guide
Electrical / Optical Characteristics
Absolute Maximum Ratings
Relative Intensity vs Wavelength
Reflow Soldering Profile
Tape Specifications

Specifications

Package	1500 pcs / reel
Moisture Sensitivity Level	Level 4
Operating Temperature Range	-40 °C to +85 °C

Frequently asked questions

What is the recommended reflow temperature for the KAA-3528SRSGC?

The recommended reflow temperature is 245 °C (±5 °C).

How many LEDs are supplied per reel?

The LEDs are supplied on tape and reel with 1500 pieces per reel.
